CIPR-76W

Eco Power Equipment

Heavy-duty continuous rated power generation.

SKU: CIPR-76W

Portable gaseous fuel power generator with an integrated power distribution system for quick and simple connections

  • Lower cost and emissions from a gas fuel source
  • Based on a proven heavy-duty engine platform and fuel system. Modern gaseous fuel delivery system with simple-to-use external connections for simple and reliable setup and commissioning.
  • High-performance automation with integrated digital control. Remote control and telematics are ready from new
  • Prototype & Production Tested Design

Specifications

Standby Power

(Three Phase)

Standby Power

(Single Phase)

Prime Power

(Three Phase)

Prime Power

(Single Phase)

Propane

98 kVA, 72 kW

250 amps @ 208, 3Ø
108  amps @ 208, 3Ø
87 amps @ 208, 3Ø

47.5 kVA, 38 kW

158 amps @ 240, 1Ø

97 kVA, 72 kW

250 amps  @ 208V, 3Ø
108  amps @ 480V, 3Ø
87  amps @ 600V, 3Ø

37.5 kVA, 30 kW

125 amps @ 240V, 1Ø

Natural Gas

85 kVA, 68 kW

236 amps @ 208V, 3Ø
102 amps @ 480V, 3Ø
82 amps @ 600V, 3Ø

43.8 kVA , 35 kW

145 amps @ 240V, 1Ø

85 kVA, 68 kW

236 @ 208V, 3Ø
102 @ 480V, 3Ø
 82 @ 600V, 3Ø

37.5 kVA , 30    kW

145 amps @ 240V, 1Ø

Weight

Frequency

Power Distro

(Standard)

Inlet Gas Pressure

5200 lbs,  2363.6 kgs

60 HZ

• 6 x 120v GFCI, 20 Amp Duplex
• 2 x 125/250v 30 Amp twist lock
• 3 x 125/250v 50 amp twist lock
• 400A Cam Lock, 1 Per Phase and Neutral / GND
• Hard Wire Lugs:  One Connection per Phase 2/0~14 AWG

10 inH20, 2.5 kPa, 25 mBar - 1-1/4" NPT

CIPR76WC

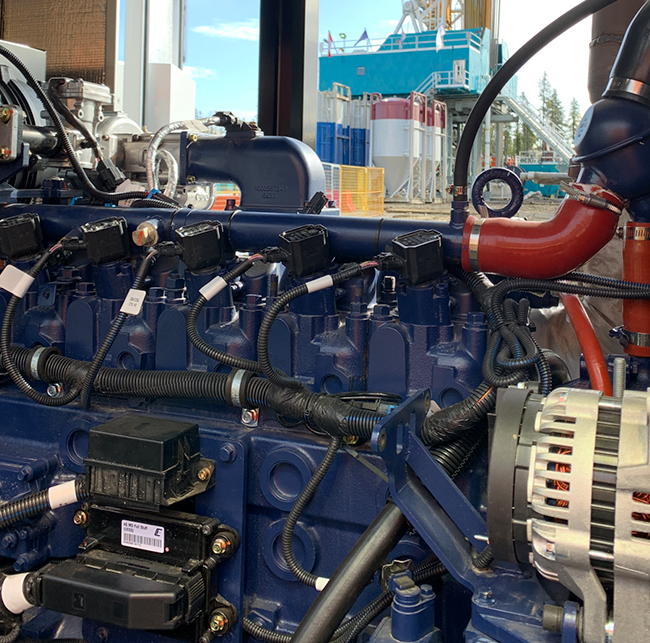

A heavy-duty diesel block is used to build this engine, which ensures long-term dependability and performance.

Natural Gas and Propane Reduce Emissions output over diesel.

The lower cost of energy vs. diesel-powered equipment allows for tangible savings during operation.

On an energy equivalent basis, natural gas emits 30% less CO2, 90% less carbon monoxide, 95% less nitrogen dioxide, 90% less particulate matter, and 99% less sulphur dioxide than diesel.

Natural gas and propane are well-positioned for the future.  The lower cost of energy vs. diesel-powered equipment allows for tangible savings during operation.  These fuels can provide a significant first step into a lower-emissions future.

co2down
76PANEL

Advanced Control System

Dynamic on-board power distribution systems matched to application requirements; our systems can include integration with our temporary power distribution systems for complete site power solutions.

76Switch

Voltage Selector Switch

Designed to work in multiple application types and be reconfigured quickly in multiple switch positions:  347/600V, 277/480V, 120/208V and  120/240V switch positions.

SIDE76W

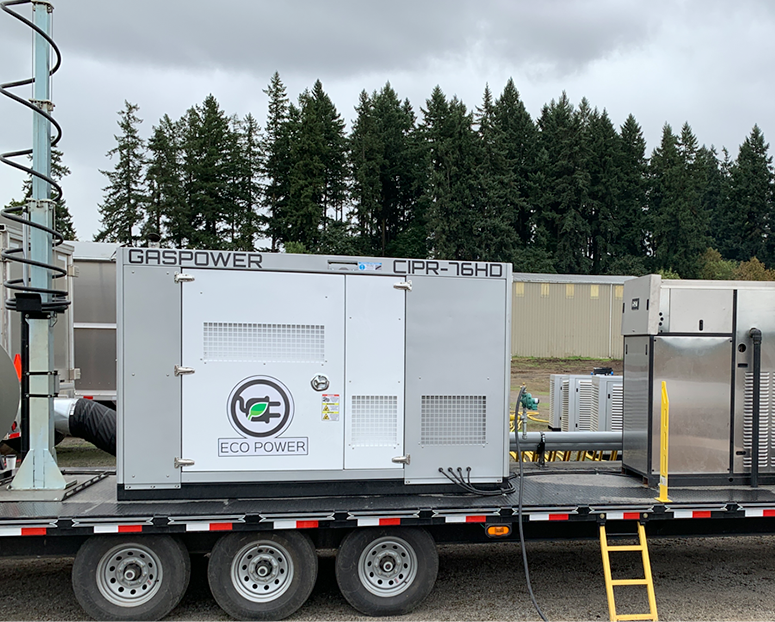

Heavy Duty Enclosure

Introducing our heavy-duty enclosure: expertly engineered for mobile applications, ensuring maximum protection and durability wherever you go.

CIPR-76W Side Dimensions
Side Dimension CIPR-76W
Isometric Drawing CIPR-76W
