SBP-ILINE

Eco Power Equipment

SBP-600-ILINRE
SBP-600-ILINRE SBP-600-ILINE2

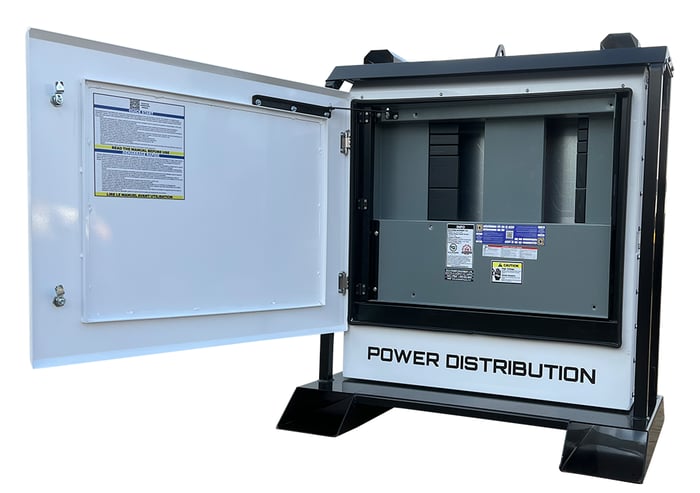

NEMA 3R Portable I-Lines

SKU: SBP-ILINE

The I-Line™ power distribution panelboard features Schneider Electric's unique circuit breaker engagement system and is used to feed NQ and NF lighting and appliance panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in almost every market segment.

  • 600 to 1200 amp ratings
  • I-Line panel boards are designed to accept the following circuit breakers: FA,FH,BD,BG,BJ,BK,HD,HG,HJ,HL,HR,QB,QD,QG,QJ,JD,JG,JJ,JL,JR,LA,LD,LG,LJ,LH,LL,LR,MG,MJ,PG,PJ,PK,PL, RG,RJ,RK,and RL
  • Available with a shortcircuit current rating (SCCR) upto 200kA maximum (100kA@600Vac)when supplied by an I-Limiter circuit breaker
  • Powder coated aluminum enclosure
Request a quote
ILINE PANELS
SBP-600-ILINE
SBP-800-ILINE
SBP-1200-ILINE
Rated Current 600 Amps 800 Amps 1200 Amps
Operating Voltage (V) I-Line circuit breaker panel boards can be used on the following system voltages:
•120/240Vac;1-phase,3-wire
•240Vac;1-phase,2-wire
•240Vac;3-phase,3-wire
•240VacGround,B-phase;3-phase,3-wire
•208Y/120Vac;3-phase,4-wire •480Y/277Vac;3-phase,4-wire
•480Vac;3-phase,3-wire •600Y/347Vac;3-phase,4-wire
•600Vac;3-phase,3-wire
•125/250Vdc;3-wire
•250Vdc;2-wire
Circuit Breaker Space 27 inches 27 inches 63 inches
Bus Material Copper Copper Copper
Cam Lock Per Phase (400A) 2 (L1,L2,L3, N) 2 (L1,L2,L3, N) 3 (L1,L2,L3, N)
# of Glands per Unit 4 4 6
Panel Board Compliance UL 50, UL 67, CSA C22.2 #29 and 94, NFPA 70, Nema PB1
Power Inlet 2 x 400A Cam Lock 2 x 400A Cam Lock 3 x 400A Cam Lock
Power Outlet Optional Optional Optional
Enclosure Rating Nema 250, 3R Nema 250, 3R Nema 250, 3R

The highly configurable design allows customers to add or remove glands as required for specific job requirements - all gland connections are aluminum.

BusBar
