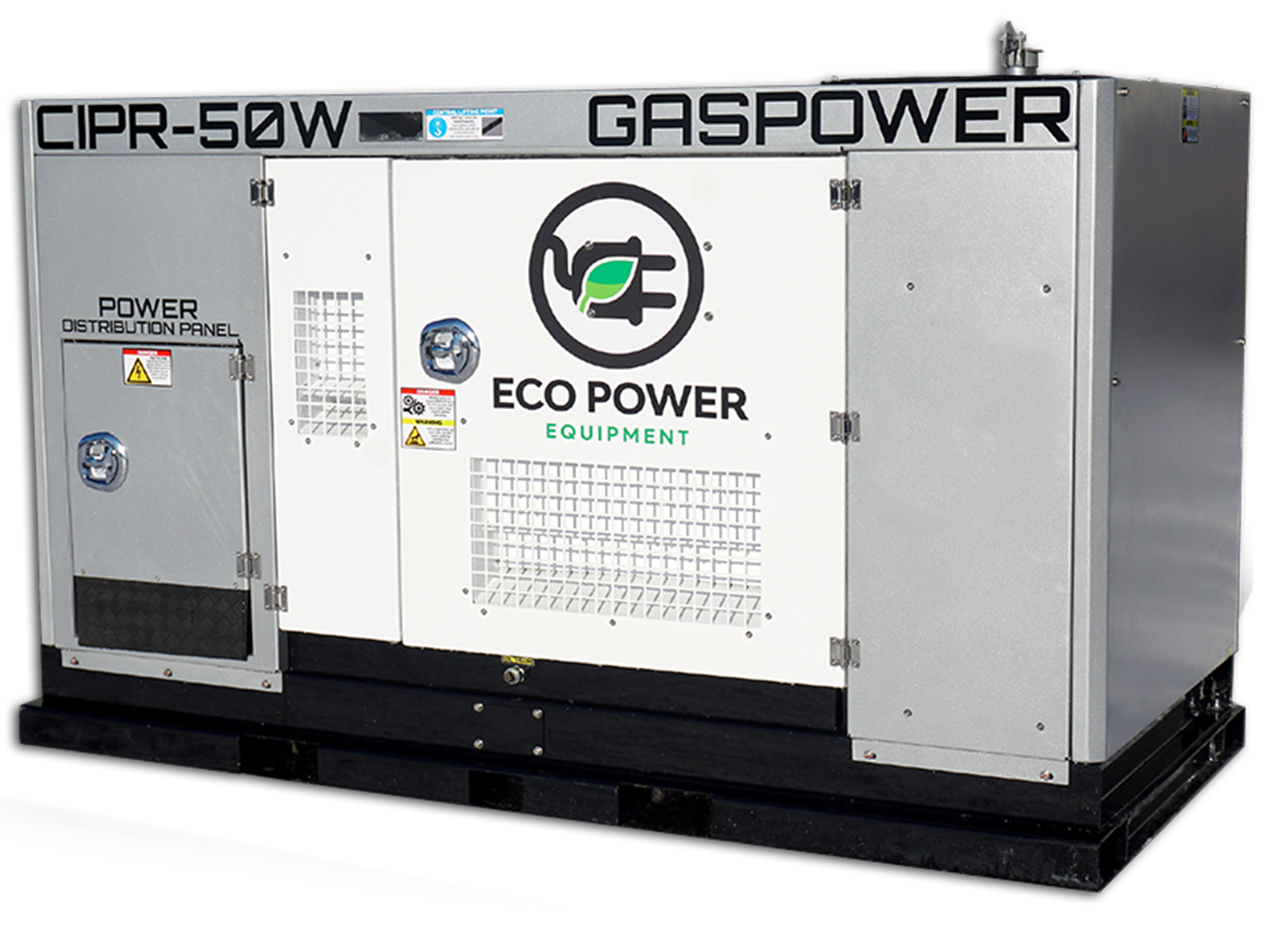

CIPR‑50WS
CIPR-50W · Skid
Features
- Prototype and production tested design
- Weatherproof enclosure with 110% fluid containment
- Safety guards on all electrical connections and moving parts
- Lockable latches, key or external lock
- Engineered vibration dampening
- Single-point engineered and rated lifting bail
- Rugged base frame and enclosure for mobile applications
- Internal silencer and catalytic converters
- All parts powder coated or galvanized
- Integrated power distribution
- Display of all critical genset measures
Rating basis and notes
Ratings at ISO 8528 reference conditions (100 kPa, 25 °C, 30% RH). Site conditions may require derating — consult the factory.Unit specifications
| Ratings (60 Hz, ISO 8528) | |
|---|---|
| Prime power — natural gas | 42.3 kW / 52.875 kVA |
| Standby power — natural gas | 47 kW / 58.75 kVA |
| Prime power — propane | 45 kW / 56.25 kVA |
| Standby power — propane | 50 kW / 62.5 kVA |
| Standard voltage | 120/208 V 3Ø |
| Voltages available |
|
| Phase / frequency | 3Ø · 60 Hz (50 Hz capable) |
| Power factor | 0.8 |
| Full-load current (prime, NG) | 147 A @ 208 V · 127 A @ 240 V · 64 A @ 480 V · 51 A @ 600 V |
| Fuel | |
| Fuels | Natural gas, Vapour propane |
| Standard configuration | Natural gas or vapour propane |
| Fuel specification | Propane HD5 (≥90% C3H8, ≤5% C3H6); utility natural gas |
| Engine | |
| Make / model | PSI 4.5L NA |
| Cylinders / displacement | I4, inline · 4,500 cc |
| Air intake | Naturally aspirated |
| Engine power | 79 / 73 bhp (LP / NG) |
| Speed | 1800 rpm |
| Starting system | Electric, 12 V |
| Battery | 1000 CCA |
| Emissions | Environment Canada / US EPA |
| Cooling | Mechanical fan |
| Lube oil capacity | 16 L / 4.23 US gal |
| Oil type | SAE 15W-40 low-ash gas engine oil |
| Coolant capacity | 19 L / 5 US gal |
| Low oil protection | Integrated low-oil protection with auto top-off tank |
| Service interval | 750 h |
| Alternator | |
| Make / model | Mecc Alte ECP32-3L |
| Regulator | DSR |
| Poles / speed | 4 pole · 1800 rpm |
| Voltage regulation | ±1.5% |
| Continuous rating (125/40 °C) | 75 kVA |
| Standby rating (150/40 °C) | 78 kVA |
| Efficiency @ 100% load | 90 % |
| Harmonic distortion | <5% |
| Protection / insulation | IP23 / Class H |
| Compliance | CSA C22.2-100, NEMA MG1-32, IEC 34 |
| Controls and distribution | |
| Controller | DEIF AGC 150 |
| Controller features |
|
| Protections |
|
| Telematics | Eco Connect (October 2026 Onwards) |
| Emergency stop | Externally accessible |
| Standard power distribution |
|
| Physical | |
| Weight | 3860 lbs |
| Enclosure type | NEMA 3R |
| Lifting | Single point bail |
| Compliance and approvals | |
| Standards | ETL; alternator CSA C22.2-100, NEMA MG1-32, IEC 34 |
