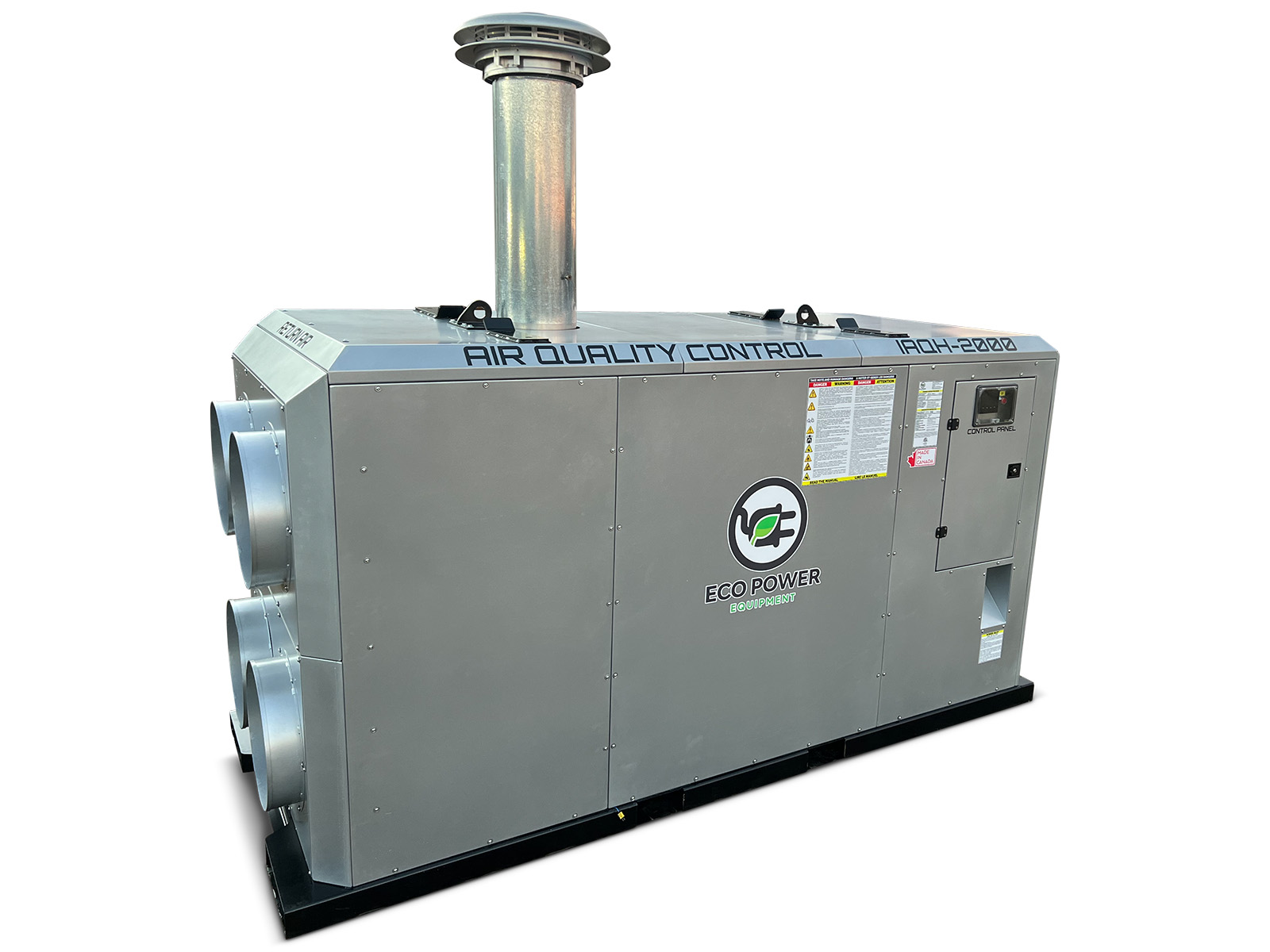

IAQH‑2000‑480V
IAQH-2000-480V · 2 MBTU/h, 480 V supply
Features
- Switchable between natural gas and propane with minimal changes
- High-resolution controller monitors all aspects of heater operation
- PID-controlled modulation for consistent material treatment across ambient conditions
- Weatherproof enclosure, water tested to UL/CSA/ANSI standards
- Safety guards on all electrical connections
- Toolless latches standard; key or external lock optional
- All parts powder coated, galvanized or aluminum
- Fork pockets in both directions and a two-point engineered, rated lifting system
- Modulating burner right-sizes the heater to any ambient condition
Rating basis and notes
Ratings at rated gas inlet pressure with clean filters and the recommended ducting; output and fuel consumption vary with altitude, gas quality and duct restriction.Unit specifications
| Heat | |
|---|---|
| Max heat output | 1,600,000 BTU/h |
| Input range | 150,000 – 2,000,000 BTU/h |
| Thermal efficiency | 85 % |
| Turndown | 26:1 |
| Modulation | PID-controlled fully modulating burner |
| Heat exchanger | 304L stainless steel, 2-pass HO design |
| Fuel | |
| Fuels | Natural gas, Propane — field switchable |
| Fuel specification | HD5 propane or utility-grade natural gas |
| Gas inlet pressure | 10–14 in WC (25–35 mbar) |
| Max fuel consumption | Natural gas: 2,000 ft³/h (2.11 GJ/h) Propane: 21.9 US gal/h (82.9 L/h) At maximum input, 1,000 BTU/ft³ natural gas and 91,500 BTU/US gal propane. Consumption falls with modulation.
|
| Electrical | |
| Supply | 480 V 3Ø |
| Full-load current | 23.5 A |
| Recommended circuit | 30 A |
| Short-circuit current rating | 10 kA @ 480 V |
| Air and ducting | |
| Max airflow | 32,000 CFM |
| Max static pressure | 6.5 in WC |
| Blowers | Backward-inclined centrifugal fan array |
| Inlet ducts | 4 × 20 in |
| Outlet ducts | 2 × 24 in |
| Max recommended duct run | 400 ft |
| Controls and safeties | |
| Controller | High-resolution heater controller |
| Control screen | 4.3 in colour touch panel |
| Sensors | Thermocouple inlet and redundant outlet temperature sensors |
| Dew point management | Yes |
| Controller features |
|
| Applications | |
| Indirect-fired heater for controlled heating and drying of construction materials during curing |
|
| Physical | |
| Dimensions (L × W × H) | 140 × 70 × 74 in |
| Weight | 4750 lbs |
| Enclosure type | NEMA 3R — Weatherproof — water tested to UL/CSA/ANSI standards |
| Fork pockets | Both directions |
| Lifting | Two-point lifting bail; fork pockets both directions |
| Compliance and approvals | |
| Standards | cETLus: CSA 2.14 / ANSI Z83.7, CSA C22.2 No. 3, UL 295, NFPA |
Max input basis to be confirmed by Engineering (see IAQH-2000).
