Panelboards
Mobile panelboards and I-Line distribution on wheels or skids. Square D panelboards with configurable breakers, Eco Power gland plates for receptacles, and 400 A cam lock feed-through so panels daisy-chain across a site.
Mobile panelboards
225 to 250 A ·4 models
225 and 250 A branch-breaker panelboards for 240 V and 600 V systems, in a stackable NEMA 3R all-aluminum enclosure. Hard-wire through an aluminum gland or a cam-lock inlet; Eco Power gland plates carry the outlets.

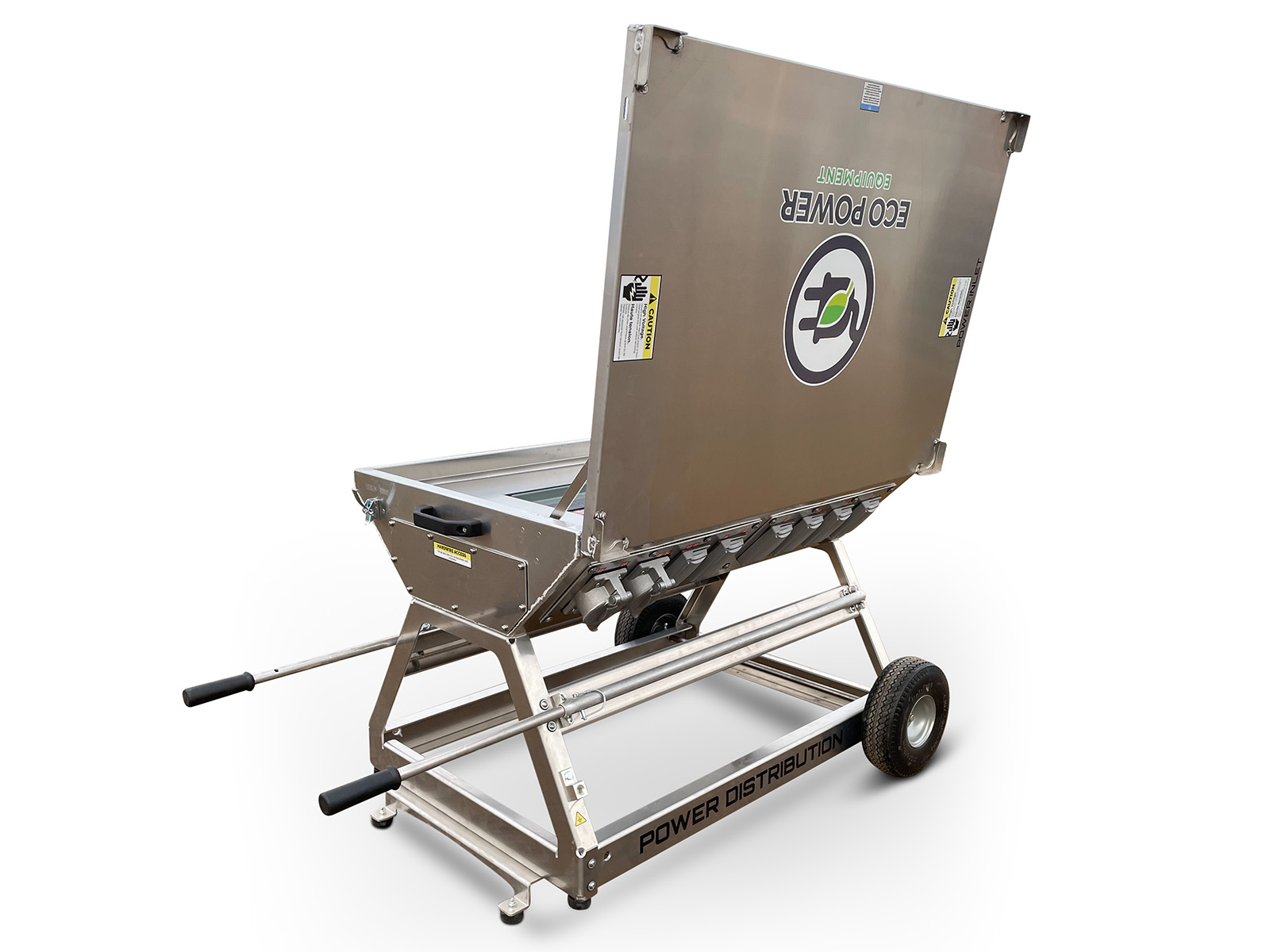

SBP‑250‑ALR‑1P
SBP-250-ALR Mobile Panelboard, Single Phase
- Rating
- 225 A
- Voltage
- 240 V AC / 48 V DC
- System
- 1Ø · 4 wires (L1, L2, N, GND)
- Breakers
- Square D QOB / QOB-VH / QHB
- Size
- 42.5 × 38.6 × 27.75 in · 98 lb

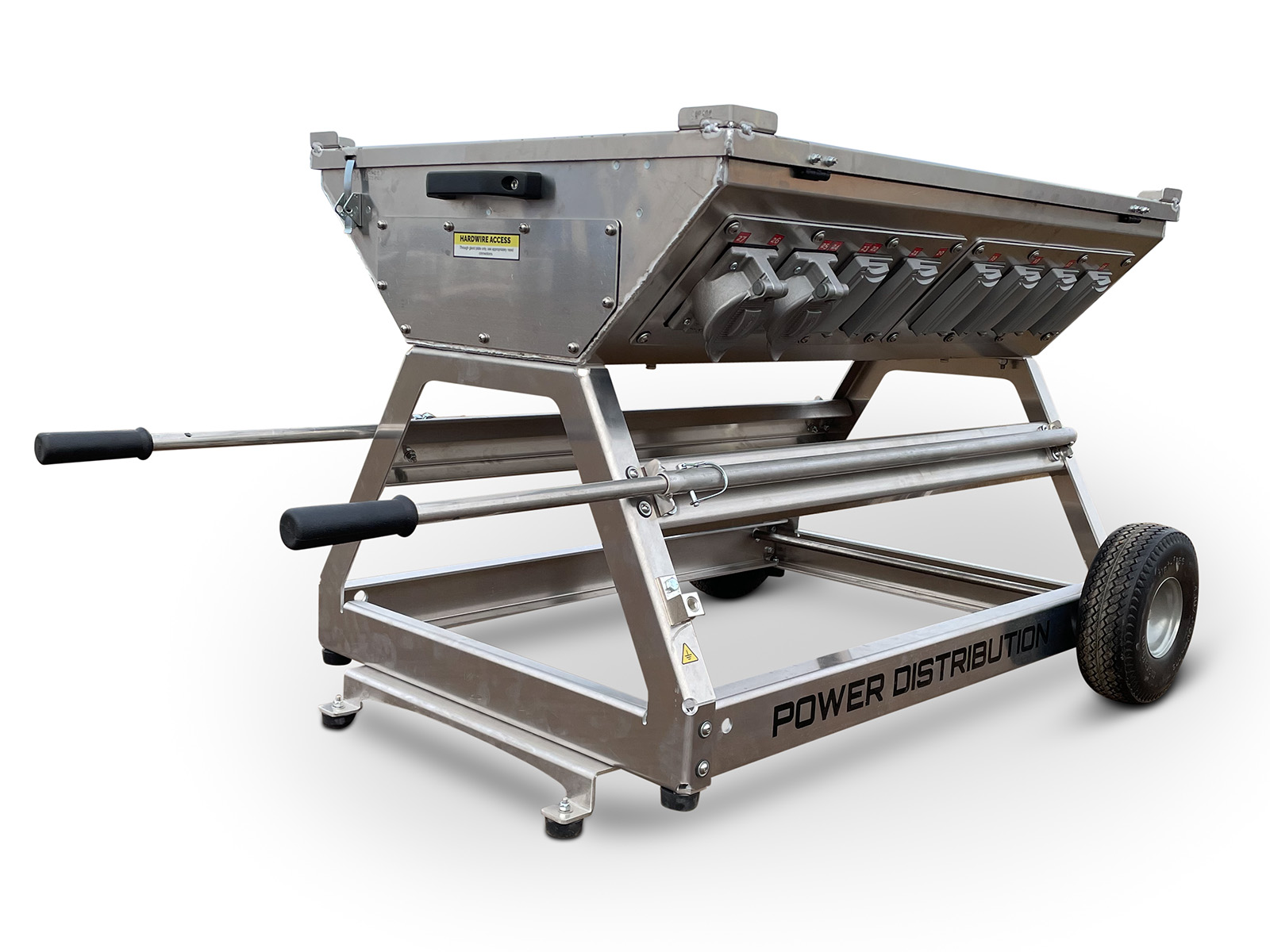

SBP‑250‑ALR‑3P
SBP-250-ALR Mobile Panelboard, Three Phase
- Rating
- 225 A
- Voltage
- 240 V AC / 48 V DC
- System
- 3Ø · 5 wires (L1, L2, L3, N, GND)
- Breakers
- Square D QOB / QOB-VH / QHB
- Size
- 42.5 × 38.6 × 27.75 in · 98 lb

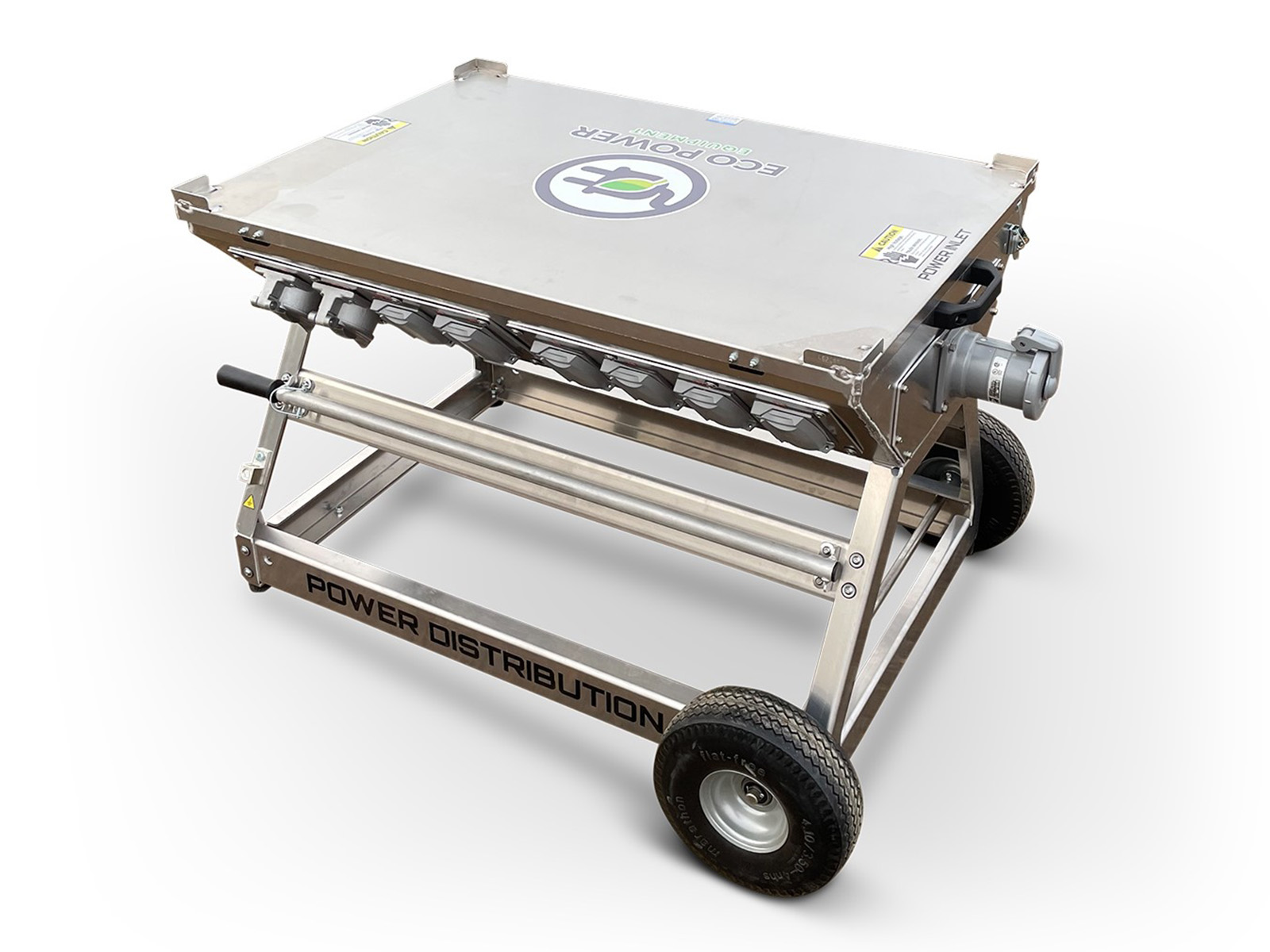

SBP‑250‑AHR
SBP-250-AHR Mobile Panelboard, 480/600 V Three Phase
- Rating
- 250 A
- Voltage
- 600Y/347 V AC
- System
- 3Ø · 5 wires (L1, L2, L3, N, GND)
- Breakers
- Square D EDB / EDG / EDJ
- Size
- 42.5 × 38.6 × 27.75 in · 98 lb

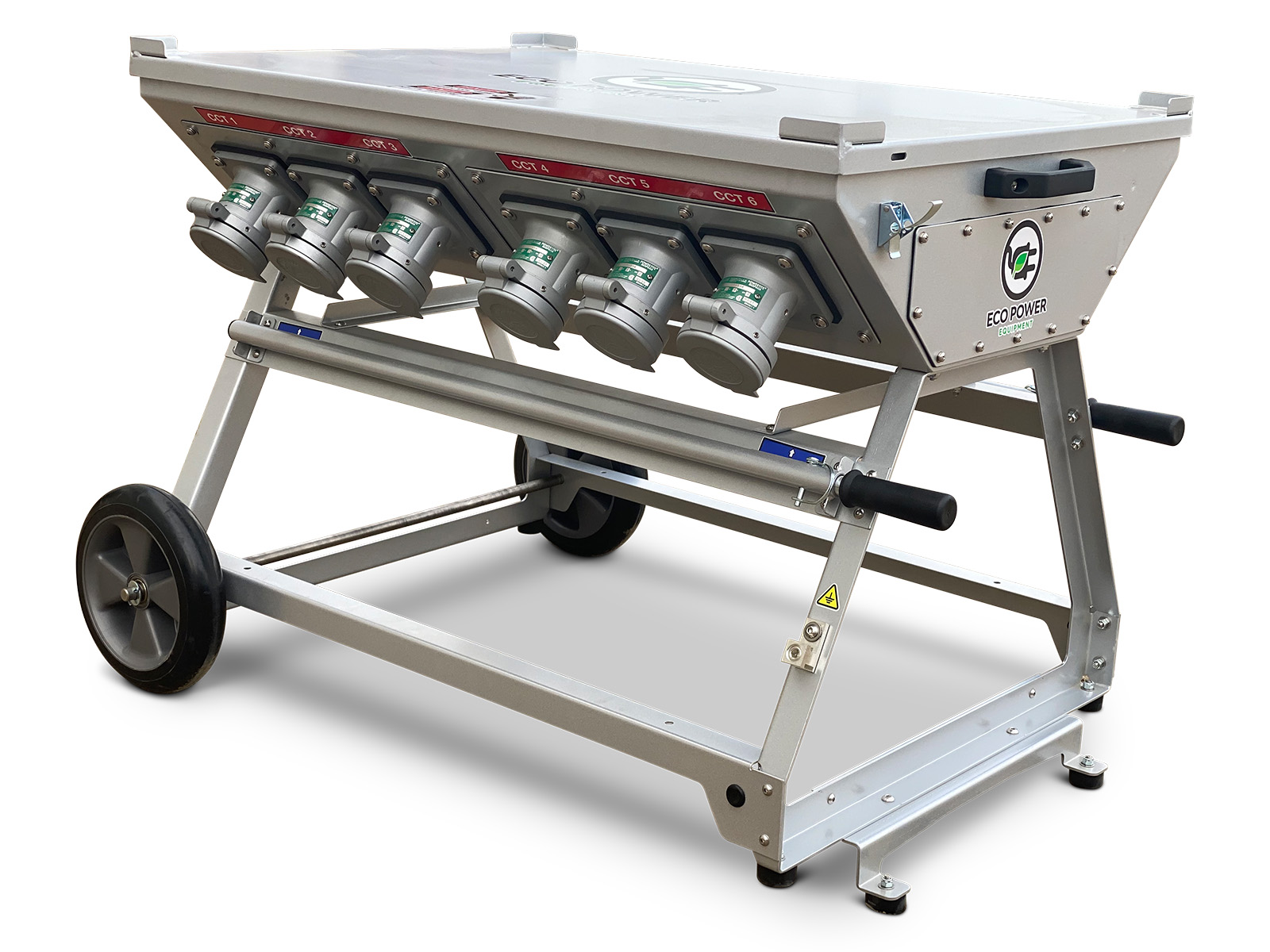

SBP‑250‑AHRW
SBP-250-AHRW Mobile Welding Panel, 480/600 V
- Rating
- 250 A
- Voltage
- 600Y/347 V AC
- System
- 3Ø · 4 wires (L1, L2, L3, GND)
- Breakers
- Noark
- Size
- 42.5 × 38.6 × 27.75 in · 98 lb
I-Line distribution panels
600 to 1200 A ·3 models
600 to 1200 A I-Line circuit-breaker distribution, rated for AC or DC systems up to 600 V, with 27 or 63 in of breaker space behind a hinged door. T series adds a 24 in raised panel with bottom gland entry.

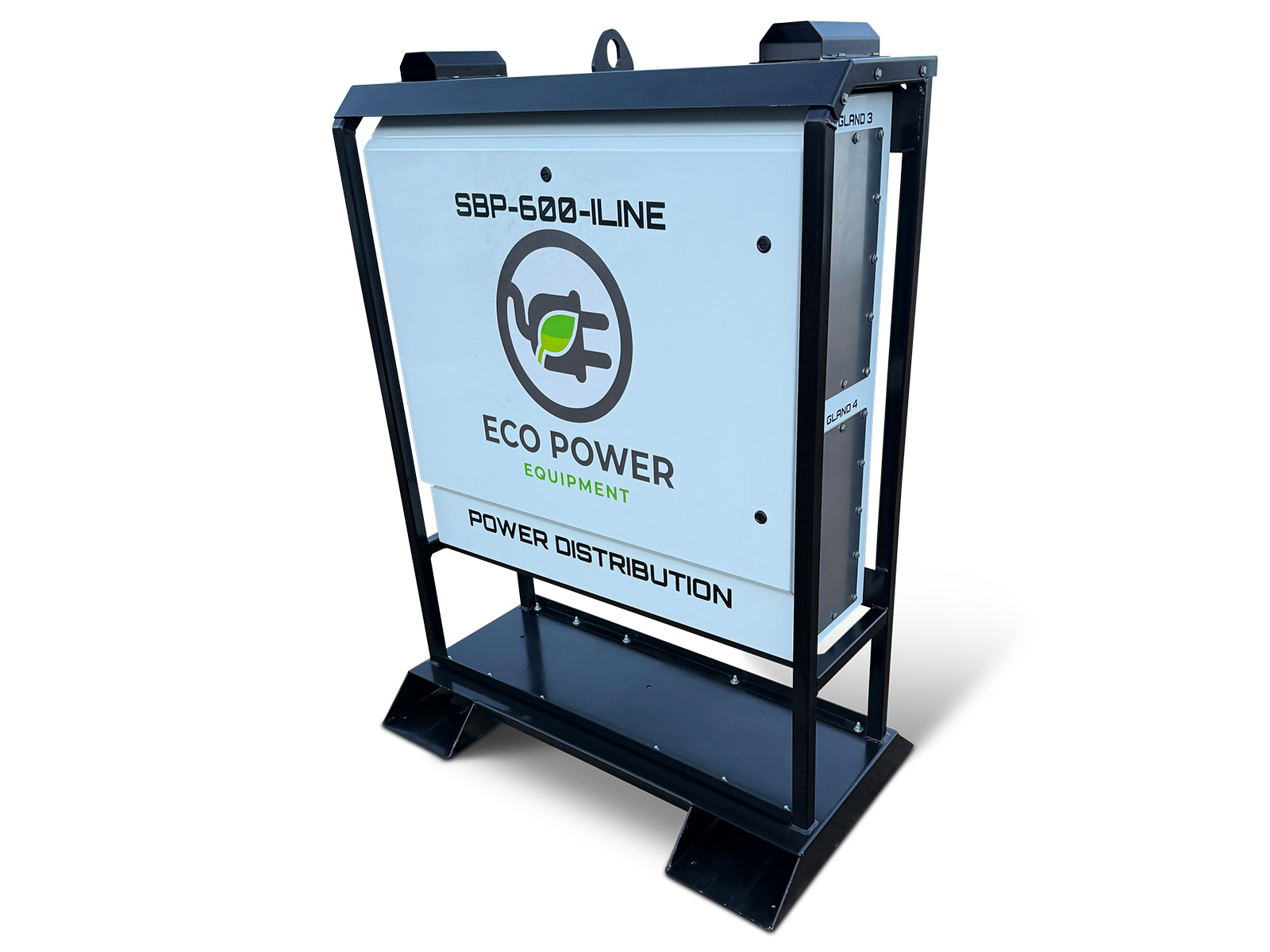

SBP‑600‑ILINE‑T
SBP-600-ILINE-T Mobile I-Line Distribution Panel
- Rating
- 600 A
- Voltage
- Up to 600 V AC · AC or DC
- System
- 3Ø · 5 wires (L1, L2, L3, N, GND)
- Distribution
- 27 in of I‑Line breaker space
- Size
- 50 × 28.6 × 65.9 in · 600 lb
SBP‑800‑ILINE‑T
SBP-800-ILINE-T Mobile I-Line Distribution Panel
- Rating
- 800 A
- Voltage
- Up to 600 V AC · AC or DC
- System
- 3Ø · 5 wires (L1, L2, L3, N, GND)
- Distribution
- 27 in of I‑Line breaker space
- Size
- 50 × 28.6 × 65.9 in · 600 lb
SBP‑1200‑ILINE‑T
SBP-1200-ILINE-T Mobile I-Line Distribution Panel
- Rating
- 1200 A
- Voltage
- Up to 600 V AC · AC or DC
- System
- 3Ø · 5 wires (L1, L2, L3, N, GND)
- Distribution
- 63 in of I‑Line breaker space
- Size
- 50 × 36 × 86 in · 810 lb
