SBP-15-XFMR
SBP-15-XFMR

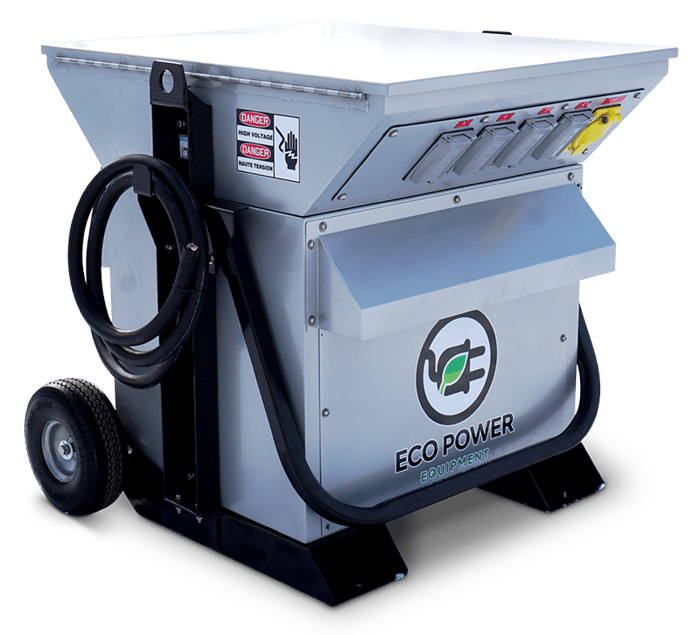

Highly mobile 15kVa transformer panel with integrated power distribution

SKU: SBP-15-XFMR

Our SPB transformer packages are ideal for lean site power distribution when using 480v or 600v supply voltages as the power source. Setting up a temporary power system that can run on generator power for a short period before switching to utility power is simple. Having a discrete temporary power supply has numerous advantages, and it ensures that projects get off to a good start and are prepared for all stages.

  • Integrated transformer with a lockable selector switch to provide 120/208v three-phase power from 480 or 600v power
  • Configurable outlet glands to accommodate most types of common plugs: straight blade, twist locks, or pin and sleeve type connectors
  • Compact design for quick deployment and use
  • Great for industrial maintenance and plant turnaround applications
  • Primary and secondary transformer protection provided
Request a quote
Unit Specification Details
Inlet Voltage 480/600v
Switchable Yes
Primary Transformer Protection

30 Amp MCCB, UL489, 0.8 Adjustable
Secondary Transformer Protection

50 Amp MCCB, UL 489
Secondary Power Distribution 8 x 120v 20 Amp Duplex GFCI,
2 x 120/208v 30 Amp Twistlock

Lifting Bail

 Engineered and Rated Central Point Lifting
Wheel Kit 10" Pneumatic

Dimensions

36" L x 30"W x 34" T
SPEC SHEET DOWNLOAD

The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates.



sbp15

Measure temporary power distribution in hours, not days and weeks.  Turn key setup and deployment.

  • Manage and distribute power in higher voltage to reduce wiring size and cost

  • Switchable between 480v and 600v with a lockable face plate

  • Family-wide common gland size between mobile panel boards and transformer panels to make reconfiguration to your design straightforward

  • Highly transportable - lifting bails, fork pockets and optional wheel kits to improve portability

  • Positioned for the future

  • All machines are designed for compliance with Canada and USA for transformer protection - turn-key deployment and use.

Shutdown
Screen Shot 2022-04-19 at 7.19.17 PM

Highly Configurable Gland Plate Design

We aim to develop a highly portable panel board that can be connected to a complete power system to deliver rapid and reliable power distribution while also being safe and secure.

The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates that will enable custom modifications like adding strain reliefs or teck-type connectors.

Using a single gland configuration type across our whole portfolio, our clients can easily select and design their panels with the most popular distribution types from our standard configurations, saving time and money. We also work with custom configurations with practically any conventional receptacle type available, and we are happy to build to your requirement.

  • Designed with common-sized system glands to allow for updates and changes between deployments
  • Appropriate for use indoors or outdoors
  • Small and portable configuration
  • We've devised a production strategy that allows us to swiftly and efficiently produce glands in response to customer demand.
