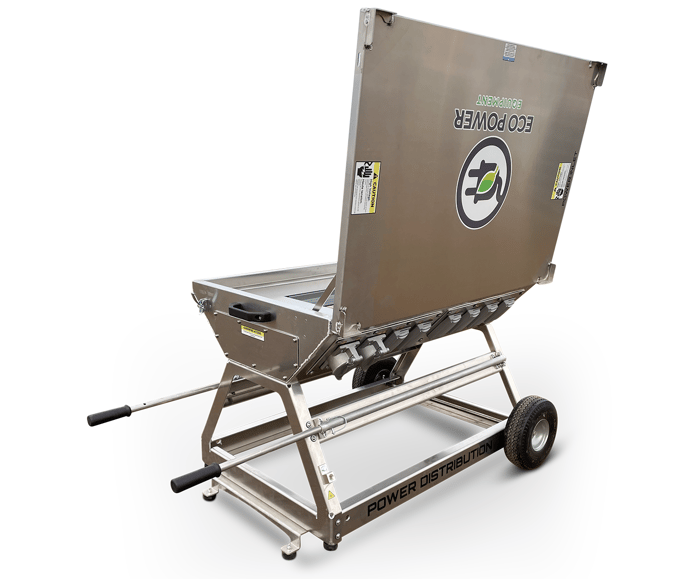

SBP-250LR

Eco Power Equipment

Highly mobile NEMA 3R panel board.

SKU: SBP-250LR

We aim to develop a highly portable panel board that can be connected to a complete power system to deliver rapid and reliable power distribution while also being safe and secure. The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates that will enable custom modifications like adding strain reliefs or teck-type connectors.

  • Designed with common-sized system glands to allow for updates and changes between deployments
  • Appropriate for use indoors or outdoors
  • Small and portable configuration
  • Camlock in and camlock out available
  • We've devised a production strategy that allows us to swiftly and efficiently produce glands in response to customer demand.
  • Daisy chain & pass-thru available
Unit Specification Details
Voltage Rating 250V
Amperage Rating 225 Amp
# of Glands per Unit 4
# of Circuits in Panel Board

30

Breaker Type Required

Type QOB

Power Inlet Options Hardwire or cam lock

Enclosure Rating

Nema 250, 3R

Dimensions

36.5" L x 27"W x 28" T

Weight

180 lbs

The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates.

Power Distribution Site Example

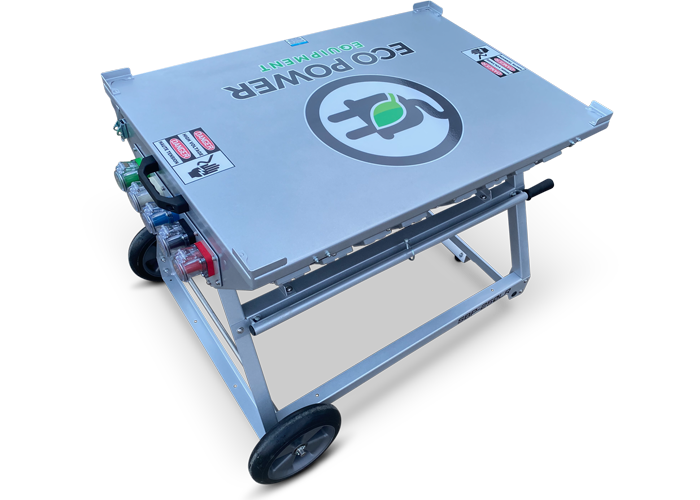

250-LR ISO

Measure temporary power distribution in hours, not days and weeks.  Turn key setup and deployment.

  • Family-wide standard gland size between mobile panel boards and transformer panels to make reconfiguration to your design straightforward
  • Highly transportable - with lifting attachment points and optional wheel kits to improve portability

  • Positioned for the future:  electrify locations quickly, to code, and have a high degree of safety.

  • All machines are designed for compliance with Canada and USA for transformer protection - turn-key deployment and use.

Construction Site
Screen Shot 2022-04-19 at 7.19.17 PM

Highly Configurable Gland Plate Design

We aim to develop a highly portable panel board that can be connected to a complete power system to deliver rapid and reliable power distribution while also being safe and secure.

The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates that will enable custom modifications like adding strain reliefs or teck-type connectors.

Using a single gland configuration type across our whole portfolio, our clients can easily select and design their panels with the most popular distribution types from our standard configurations, saving time and money. We also work with custom configurations with practically any conventional receptacle type available, and we are happy to build to your requirement.

  • Designed with common-sized system glands to allow for updates and changes between deployments
  • Appropriate for use indoors or outdoors
  • Small and portable configuration
  • We've devised a production strategy that allows us to swiftly and efficiently produce glands in response to customer demand.
