SBP-400-ATS

Eco Power Equipment

Highly mobile, configurable ATS solutions.

SKU: SBP-400-ATS

Portable automatic transfer switch solutions designed for multi-voltage applications.

  • Integrated control panel heating system: arctic rated design
  • Advanced control system to provide applicaiton flexibility
  • Amperage monitoring and data logging capabilities
  • Heavy-duty contactor-based design
  • Switchable Voltage Design: 120/208v, 120/240V, 277/480V, 347/600V with lockable selector switch
  • Open transition out of the box but capable of closed transition (short time parallel), ensuring transition initiates only when both contractors are in sync. This transition is suitable for systems where no break (no blackout) changeover is required. Option to control motorized circuit breakers, contractors, or changeover switches.
  • Simple configuration, monitoring and control both on-site and remotely
  • Remote control and monitoring ready.
  • Event-based history log for easy troubleshooting.

Specifications

UNIT SPECIFICATIONS

Control Standard

Contactor Production Standard

Rated Operational Current At -40 to 131 ºF (-40 to 40 ºC)

Tolerance of Supply Voltage (Any switch position)

Enclosure Rating

Power Distribution (Standard)

Shore Power

Dimensions

Weight

CSA C22.2 No. 178.1, UL 1008

 CSA C22.2 No. 14,  UL 60947-1, UL 60947-4-1, IEC 60947-1 & 60947-4-1

AC-1        690V                500 A
AC-3        380/400V        400 A
AC-3        660/690V        400 A
AC-4        380/400V        175 A
AC-4        660/690V        150 A

Operation            85% - 110%
Drop Off            20% - 75%

Nema 3R

Source 1 Connection: 400 Amp Male Camlock
Source 2 Conneciton: 400 Amp Male Camlock
Load Connection: 400 Amp Female Camlock

4 x 120V - 20 Amp GFCI Duplex w/ Integrated 10kVa Transformer

36 x 30 x 47 (inches)

650 lbs, 295 kgs

ATSSTILL

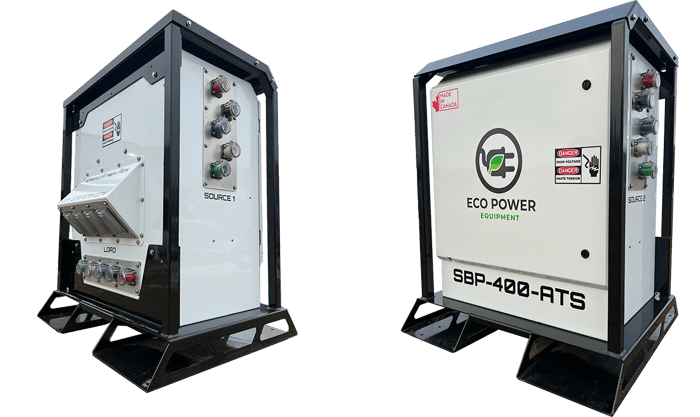

Designed to be portable and reconfigurable quickly and easily to support mobile rental and temporary applications.

Intelligent, configurable ATS control.

Our Automatic Transfer Switch (ATS) controller allows for easy and fast switching between two independent power sources. It monitors and controls the mains supply and its voltage, frequency, and current, with the possibility of connecting to a single or multiple gen-set or utility sources. The controller is designed with high-level security features, and it is easy to use and configure using ComAp’s InteliConfig configuration tool. InteliATS2 controllers are ideal for managing switching power supply in various settings such as administration buildings, schools, factories, hospitality, and other facilities to avoid power outages and potential financial or material damages.

  • Mains-to-Mains or Mains-to-Generator application
  • Built-in PLC blocks
  • Closed transition
  • Cybersecurity by design
  • RS485 on board
  • Precise current measurement
  • Remote control
COMAP

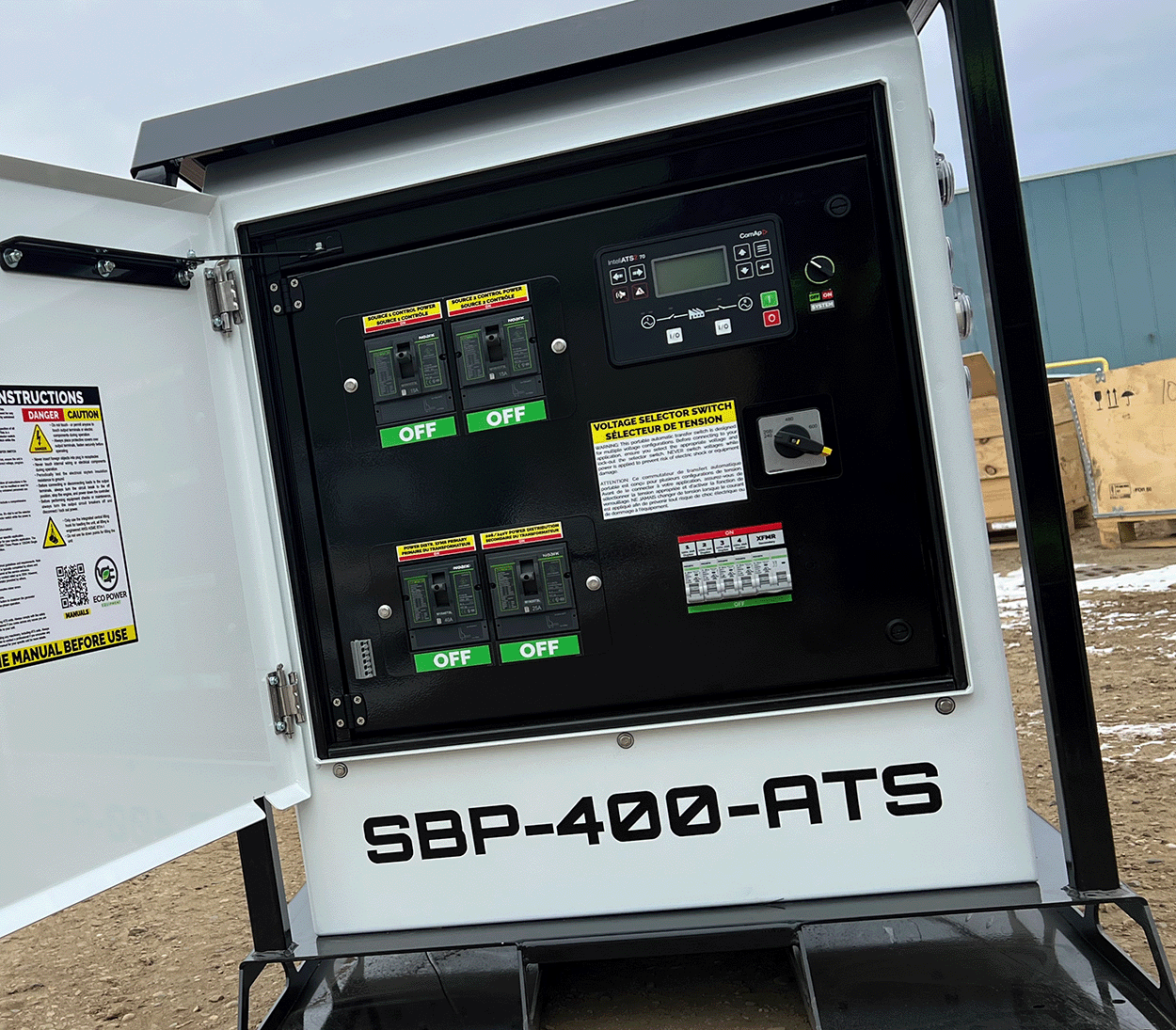

Control

Advanced Control System

Enhanced onboard power distribution systems featuring an integrated transformer ensure consistent power availability. This versatility accommodates varying system voltages, seamlessly powering both the block heater and battery chargesr – offering a plug-and-play experience.

ATS3

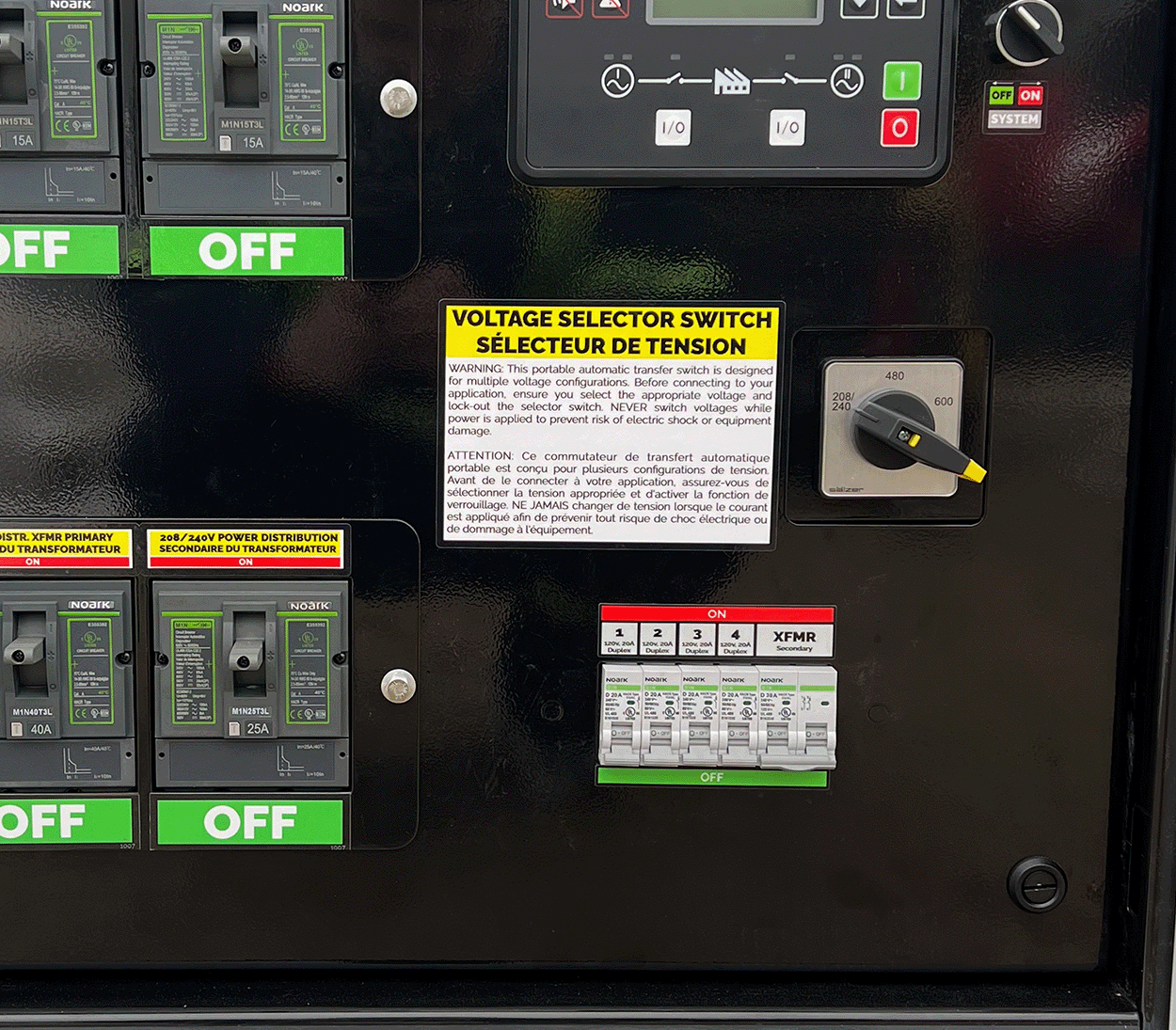

Voltage Selector Switch

Designed to work in multiple application types and be reconfigured quickly in multiple switch positions:  347/600V, 277/480V, 120/208V and  120/240V switch positions - reprogramming of controller is quick an easy with with laptop connection of from controller panel.

ATS4

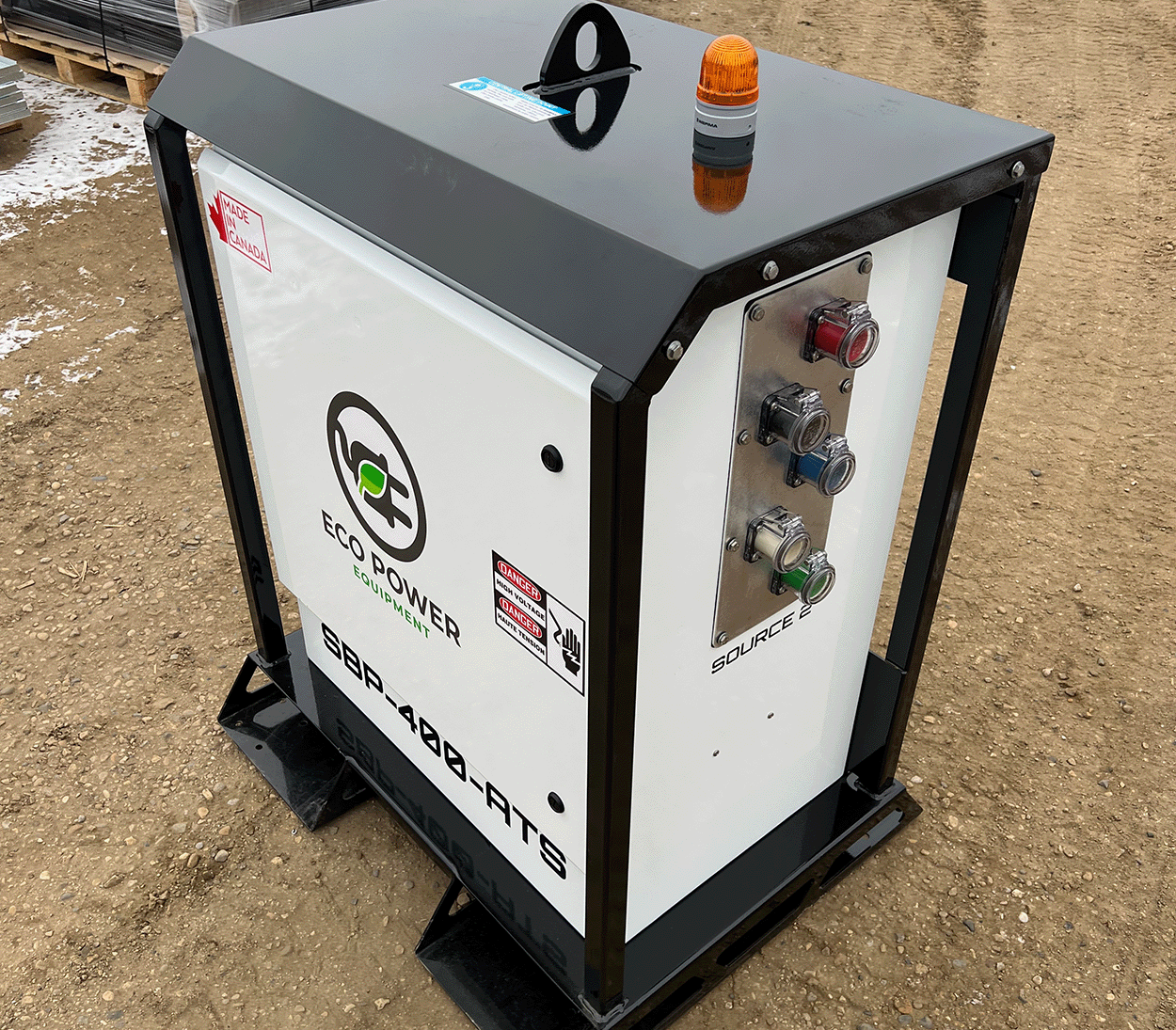

Heavy Duty Enclosure

Introducing our heavy-duty enclosure: expertly engineered for mobile applications, ensuring maximum protection and durability wherever you go.
